S13-M-2500-10 Oil-Immersed Transformer Design

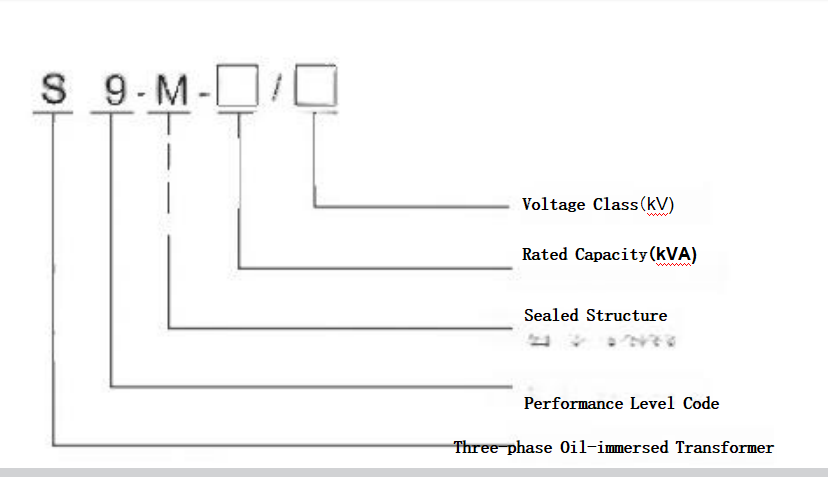

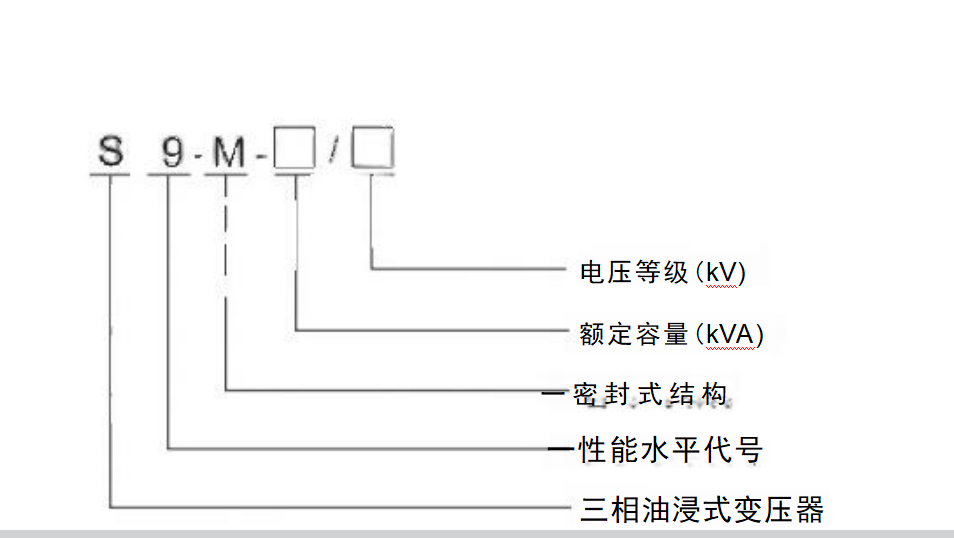

S13-M-2500/10 Fully Sealed Distribution Transformer Product Brief：   Type of Unit: Outdoor Type   Normal Service Conditions:Altitude not exceeding 1000m; maximum ambient temperature +40℃, minimum ambient temperature -25℃.   Special Service Conditions:Altitude over 1000m; maximum ambient temperature +40℃, minimum ambient temperature -45℃.(Please specify in detail when placing an order.)   Installation Site:Environment free of corrosive gas and obvious dirt. Executive Standards：   · GB 1094.1~2-1996 Power Transformers   · GB 1094.3,5-2003 Power Transformers   · GB 1094.4-2005 Power Transformers     · GB/T 6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers Model Meaning：   See Figure 3 for details. Performance Characteristics：    All high-voltage windings adopt a multi-layer cylindrical structure, which optimizes the impulse voltage distribution of windings.   For units with a capacity ranging from 630 to 2000 kVA, the low-voltage windi…
