CTT5000 Spring Torsion Testing Machine 5000N.mm

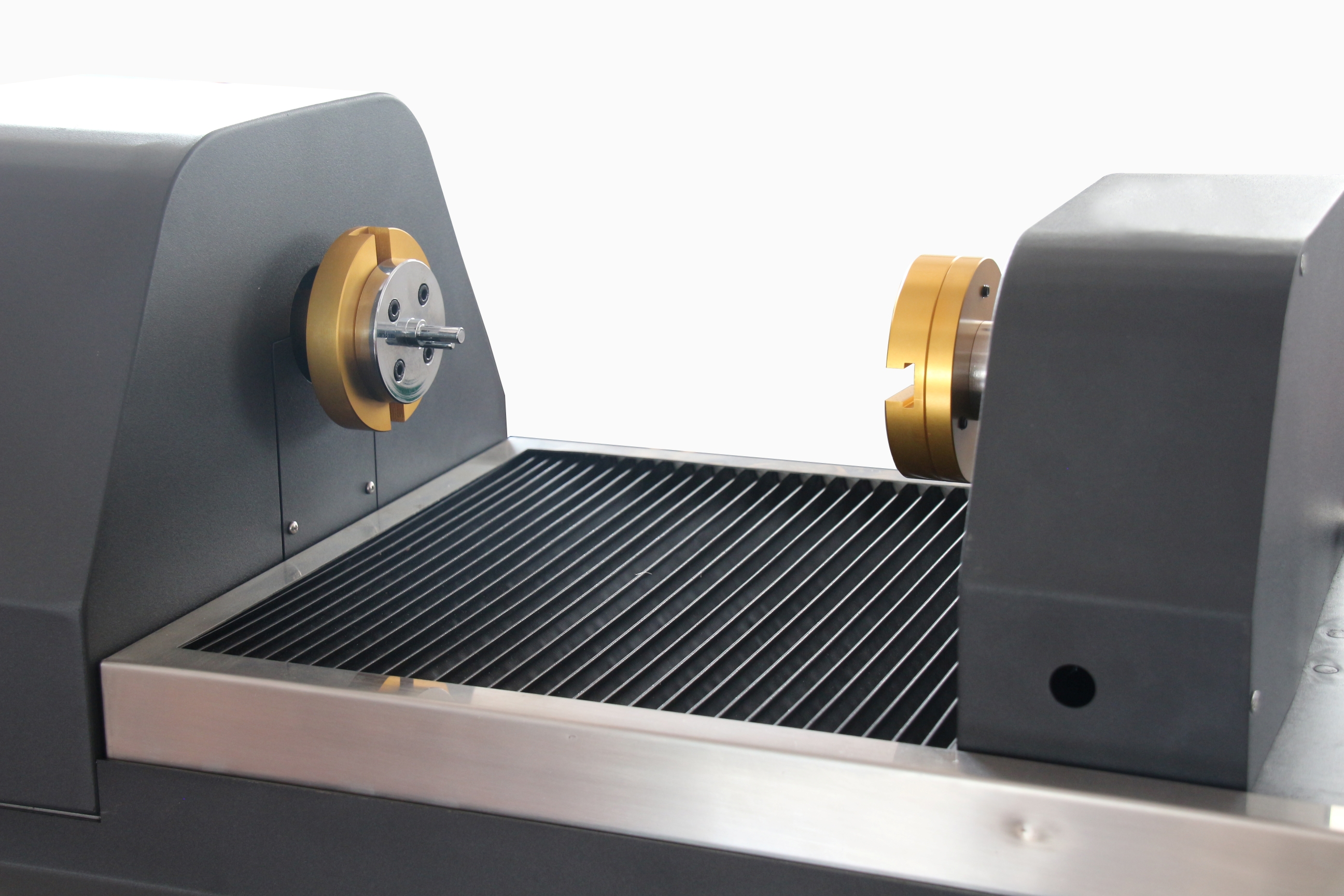

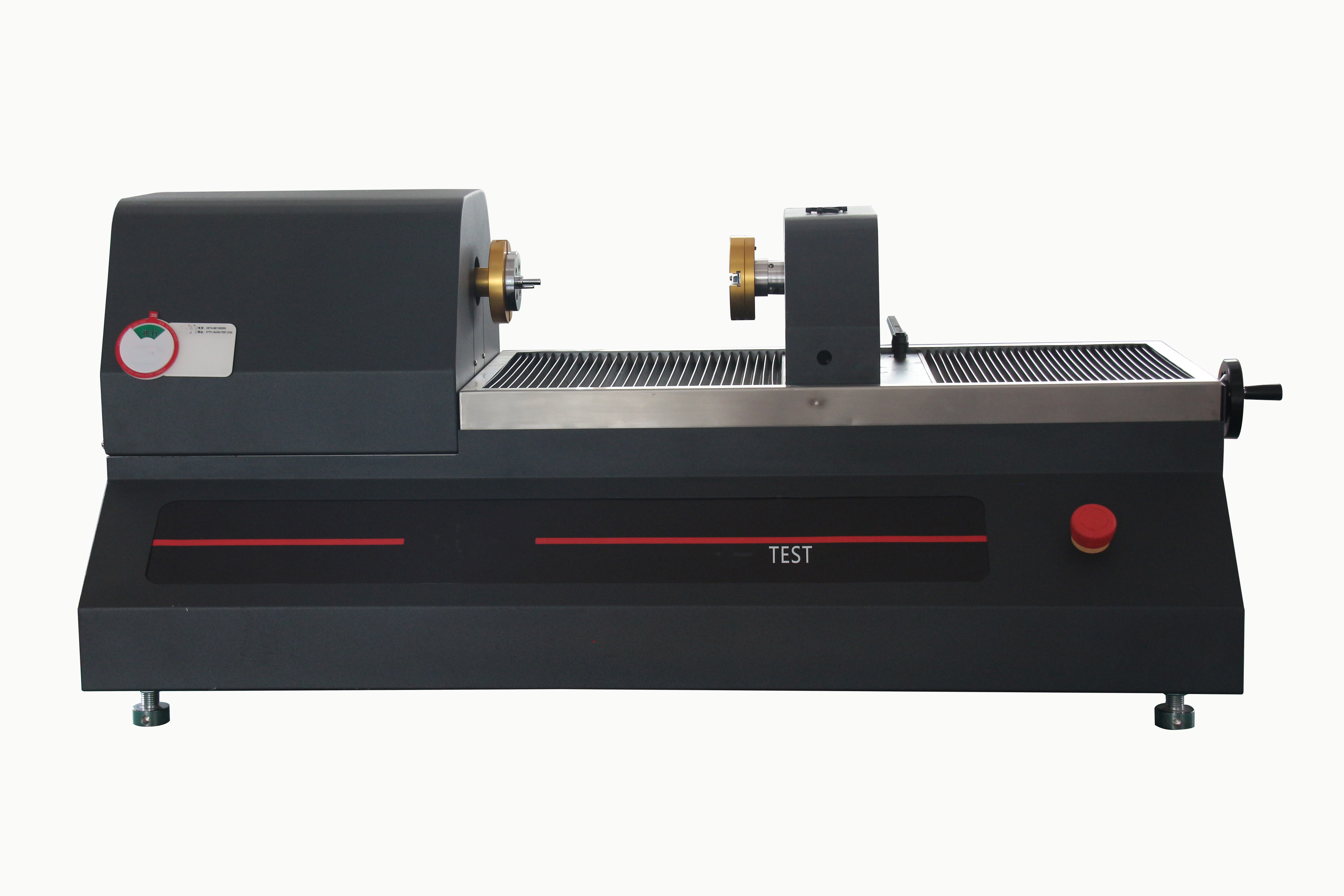

Equipment Purpose Electronic Torsion Testing Machine is primarily used for testing the torque performance of torsion springs, components, and elastic elements. The test specimen is mounted between two adjustable clamps. By changing the fixtures, it can adapt to testing the torsion properties of different specimens. The testing machine is computer-controlled​ and can perform torque tests at a fixed angle. The display shows the angle-torque curve​ of the test specimen in real-time, along with parameters such as angle, torque, twisting speed, machine status, test data storage, and test report printing. Additional software features can be added. Mainframe Structure The mainframe adopts a horizontal structure. The frame has been analyzed using finite element methods (FEM) for optimal stress distribution, ensuring sufficient rigidity and strength. The moving base utilizes a zero-clearance linear guide pair, preventing the generation of axial forces during material twisting due to defo…
