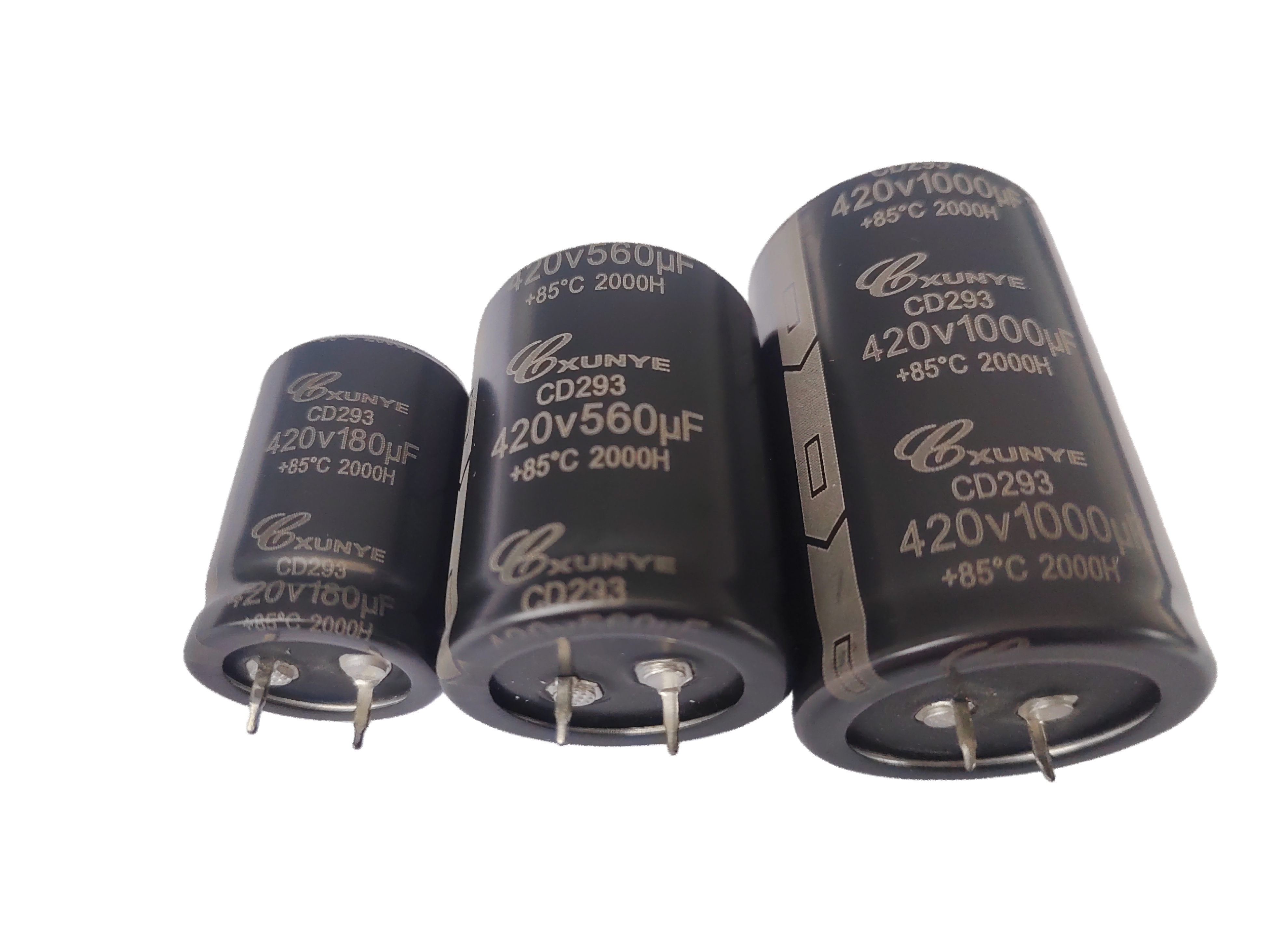

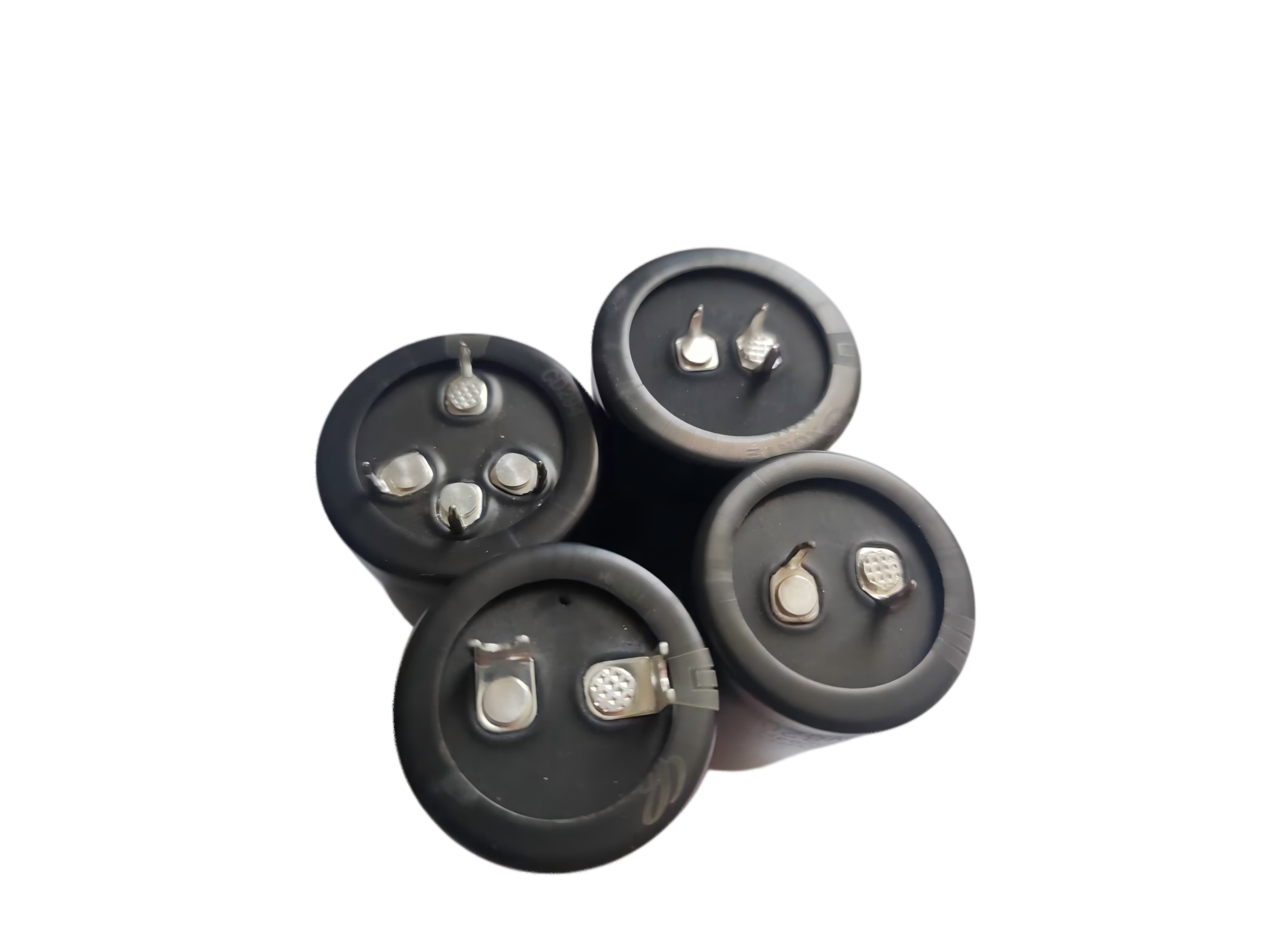

Long term high-voltage horn type electrolytic capacitor

Long Term High-Voltage Horn Type Electrolytic Capacitor Product Overview The Long Term High-Voltage Horn Type Electrolytic Capacitor is a professional aluminum electrolytic capacitor designed for long-term, high-stability industrial applications. As a premium bull horn type electrolytic capacitor, it integrates excellent high temperature resistant performance and long service life for industrial use, ensuring consistent performance in high-voltage power systems. This component is built to meet global industrial standards and provides reliable energy storage and filtering for critical electrical equipment. Technical Specifications Rated Voltage Range: 160V to 600V Operating Temperature Range: -25℃ to +85℃ Temperature Characteristics: C (-25℃)/C ±20% Loss Value (tg δ): ≤ 200% of the initial specification value Leakage Current (LC): ≤ initial specification value High Temperature Aging Performance: After 1000 hours of storage at 85℃ and recovery to 25℃, capacity change rate (ΔC) ≤ ±15%,…
