Self Regulating Heat Tracing Level Gauge

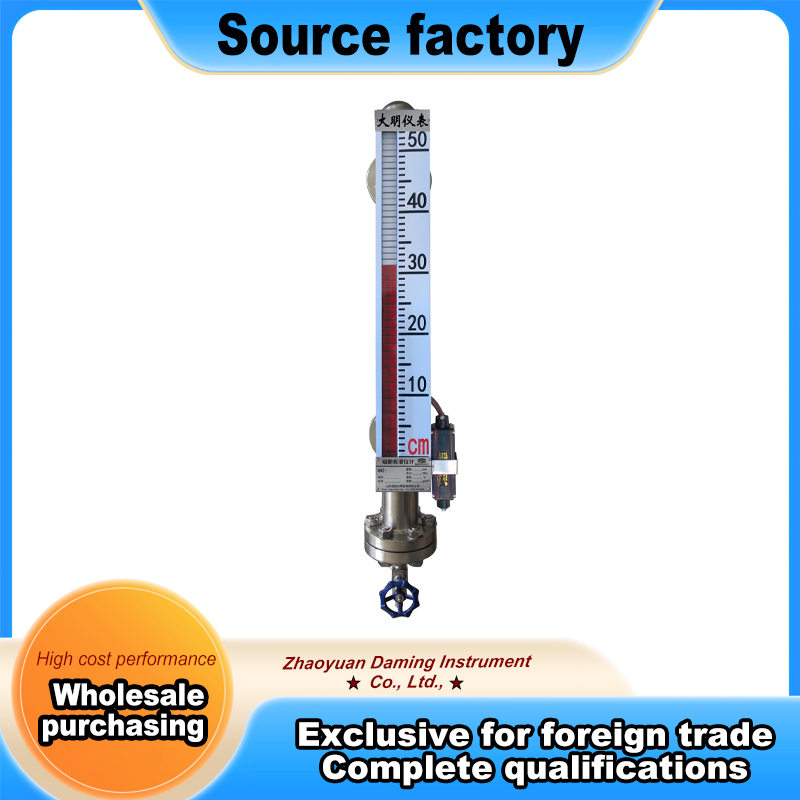

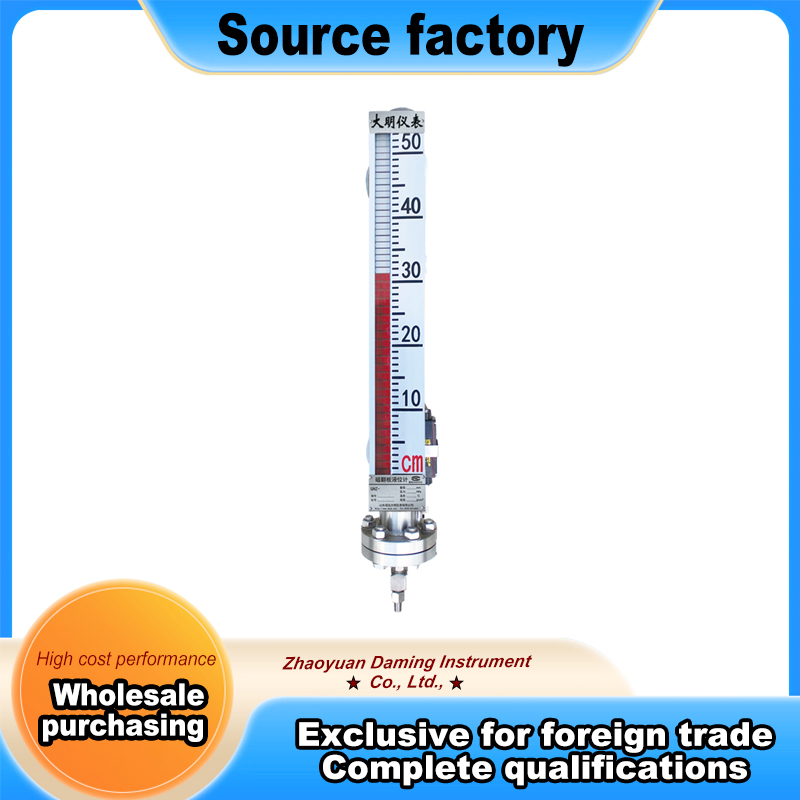

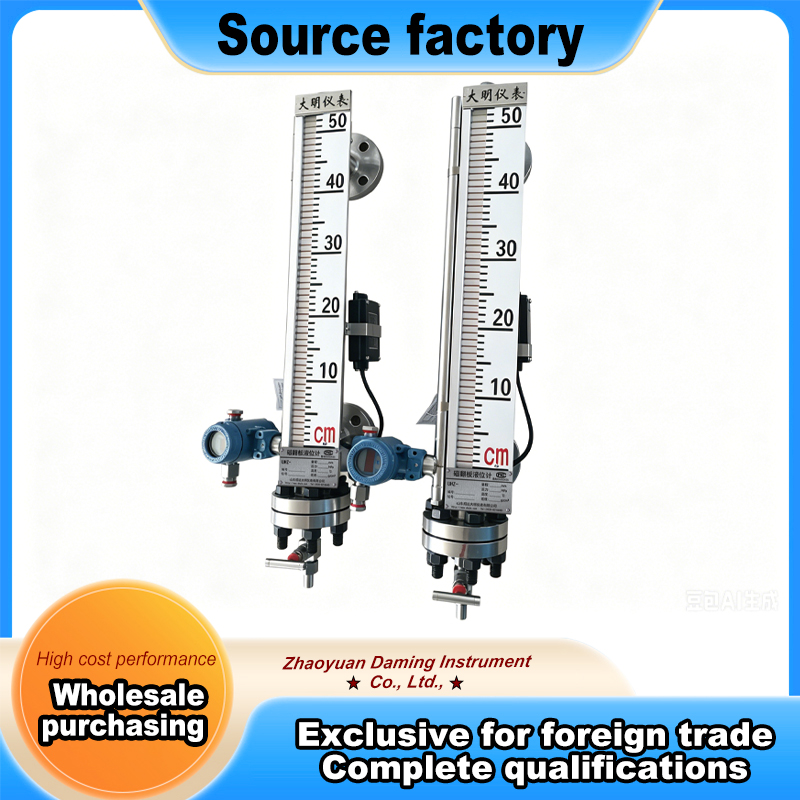

Explosion Proof Electric Heat Tracing Magnetic Level Gauge The UHZ Series Magnetic Level Gauge includes this explosion proof electric heat tracing magnetic level gauge. The unit is side mounted on the tank wall. A magnetic float sits inside the stainless steel main tube. The float rises and falls with the liquid level. The float magnetic field turns the red and white flags outside the tube. The red flags show the liquid level position. The white flags show the area above the liquid. This gives a clear direct reading with no power needed. The unit has a built in electric heat tracing system. The self regulating heating element adjusts power based on ambient temperature. This provides even heat to prevent media solidification and crystallization. The housing and wetted parts are made from 304 or 316L stainless steel. The explosion proof design seals all electrical components. This prevents sparks from contacting flammable vapors. The Float Level Sensor uses a similar principle for gener…
