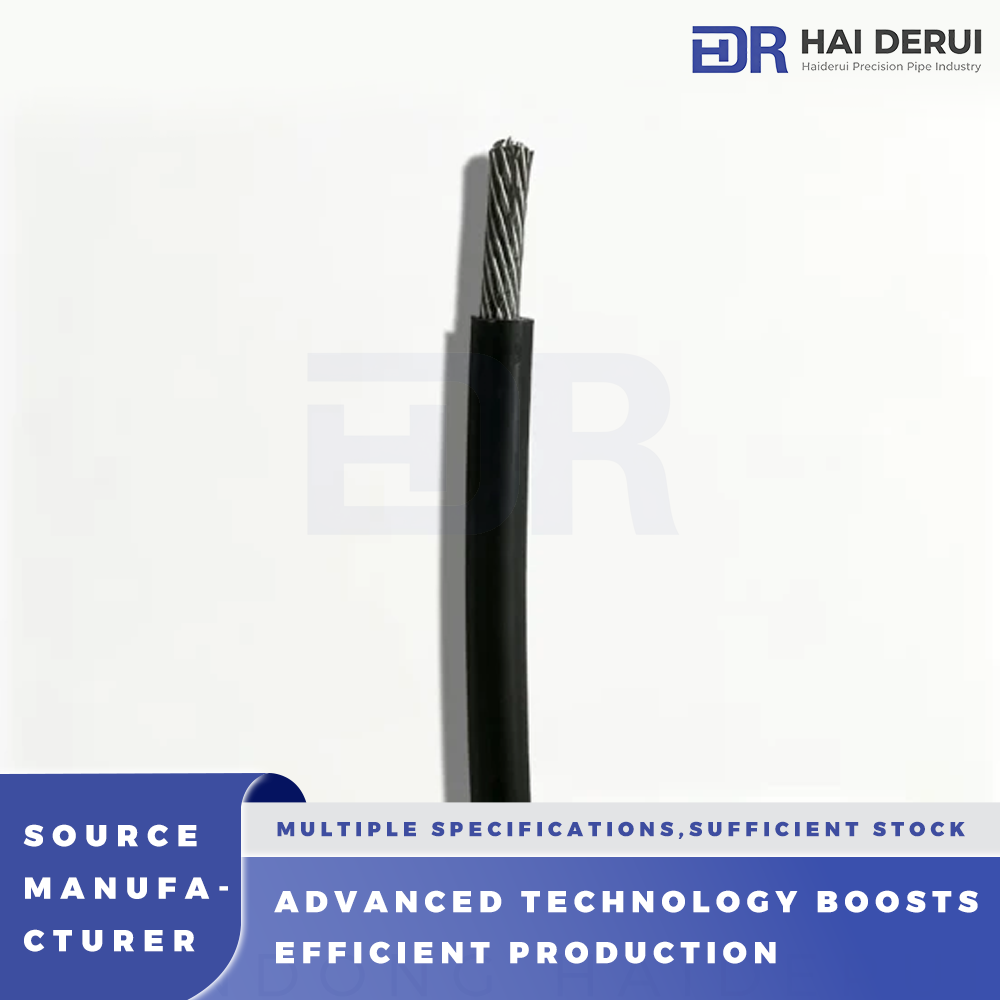

Steel-Armored W1B-5.6 Logging Detection

W1B-5.6 Outer Sheath Steel-Wire Armored Load-Bearing Detection Cable is professional electrical supporting cable for oil & gas wells. The load-bearing detection cable can withstand heavy tensile load, supply stable power to downhole control systems, transmit measuring signals, and realize downhole depth measurement and operation control. It is widely adopted for well logging, perforating and core sampling operations in oil and gas wells.   Manufactured under strict internal enterprise standards, its technical parameters exceed requirements of SY/T6600-2004, JB Plant T3302 and Q/DD004 specifications. Customized production according to contract requirements is available. Four temperature resistance grades are offered: 150℃, 180℃, 232℃ and 260℃. Outer diameter ranges from 3.5 mm to 18.0 mm, more than 40 variants ranging from single-conductor to seven-conductor designs.   W1B-5.6 detection cable features complete specification options classified by outer diameter, conductor quantity an…
