Three Stage Electro-Hydraulic Servo Valve Prices

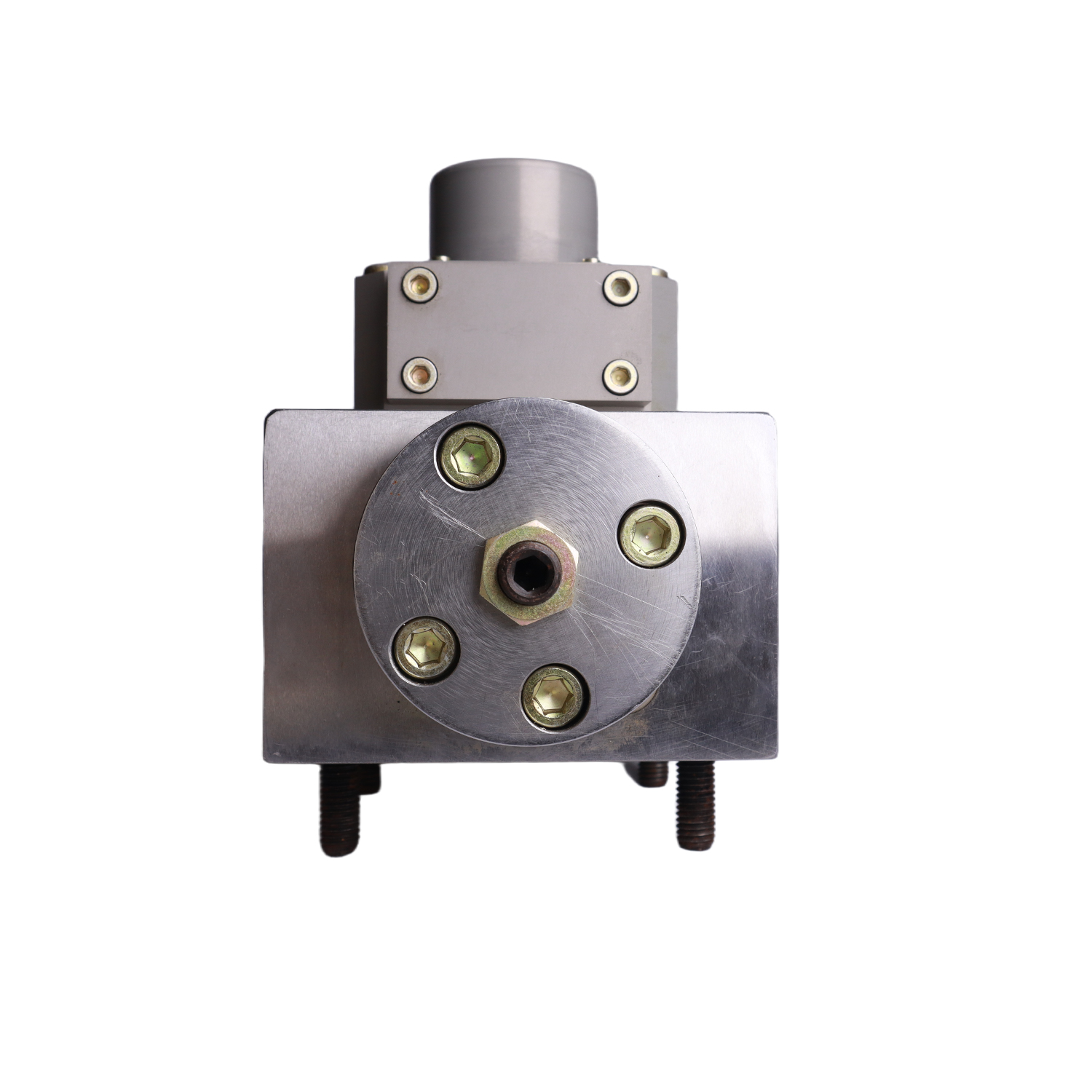

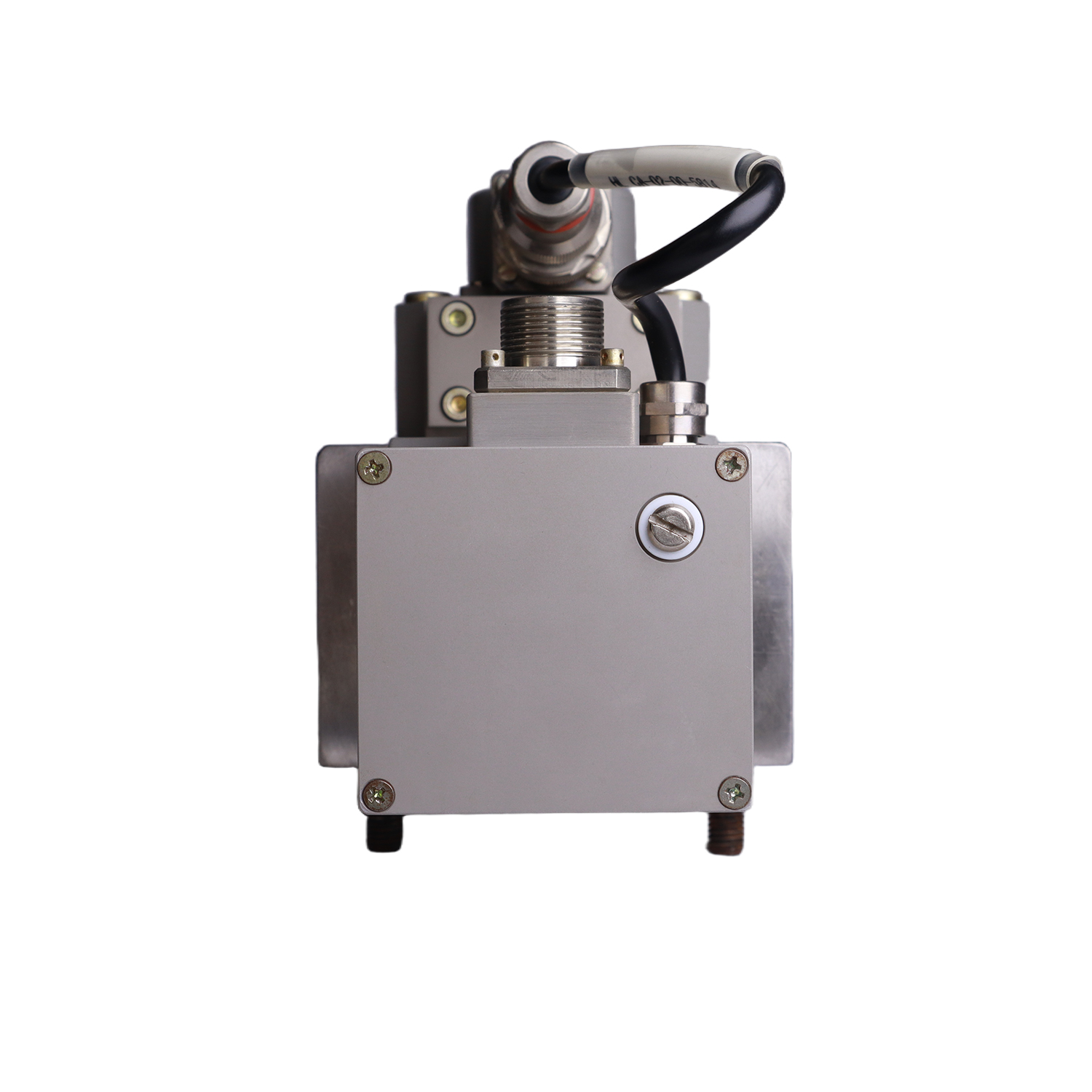

The FF-791 series electro-hydraulic servo valve is an electric feedback three-stage nozzle baffle high flow servo valve. This type of servo valve uses a two-stage dual nozzle baffle servo valve as the pilot valve, with fast response and high dynamic performance. The LVDT valve core position sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. Compared to two-stage jet tube high flow servo valves, its dynamic response is higher. This series of three-stage servo valves features both high flow rate and high dynamic response.   Product Features: ● Large static traffic and high dynamic response ●Internal integrated controller, combined with LVDT and other components to form an electro-hydraulic servo valve    internal closed-loop control ● Good output linearity ●High resolution, small hysteresis loop ●The pilot inlet and return oil can be controlled externally ● External electrical zeroing Ho…
