4 to 20mA Industrial Level Sensor

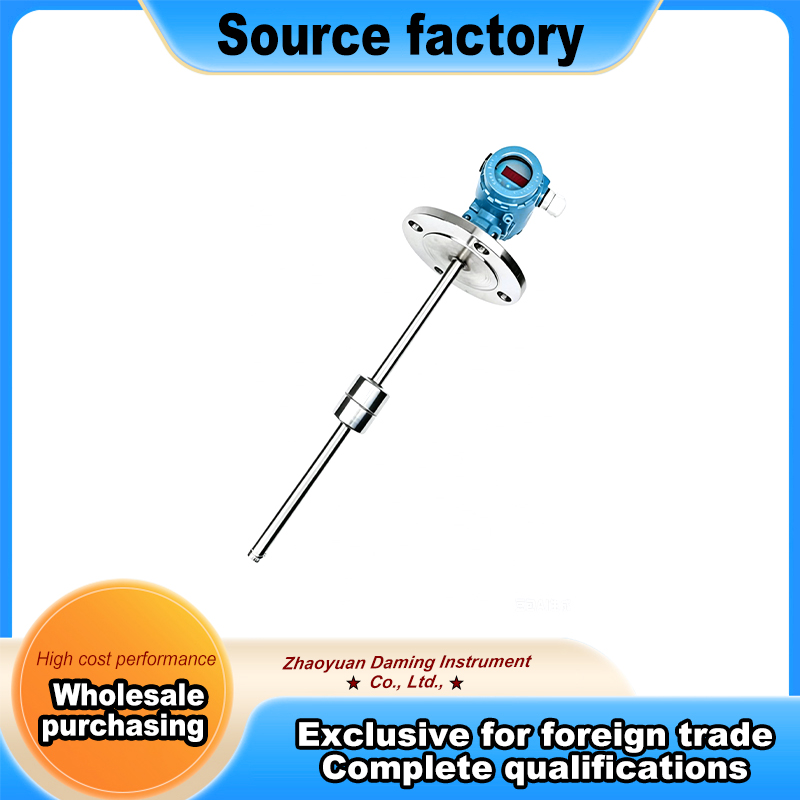

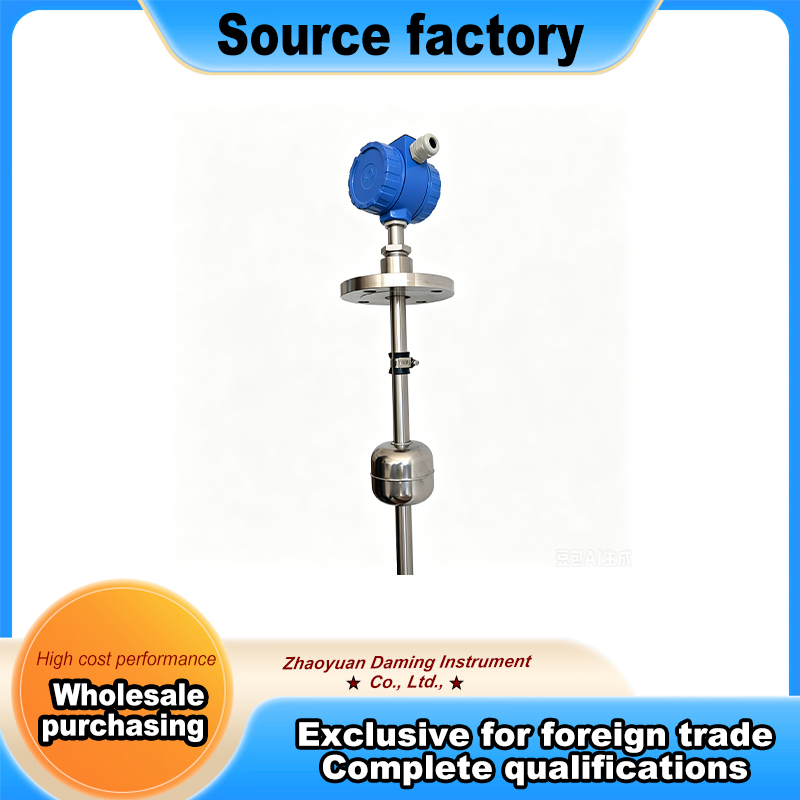

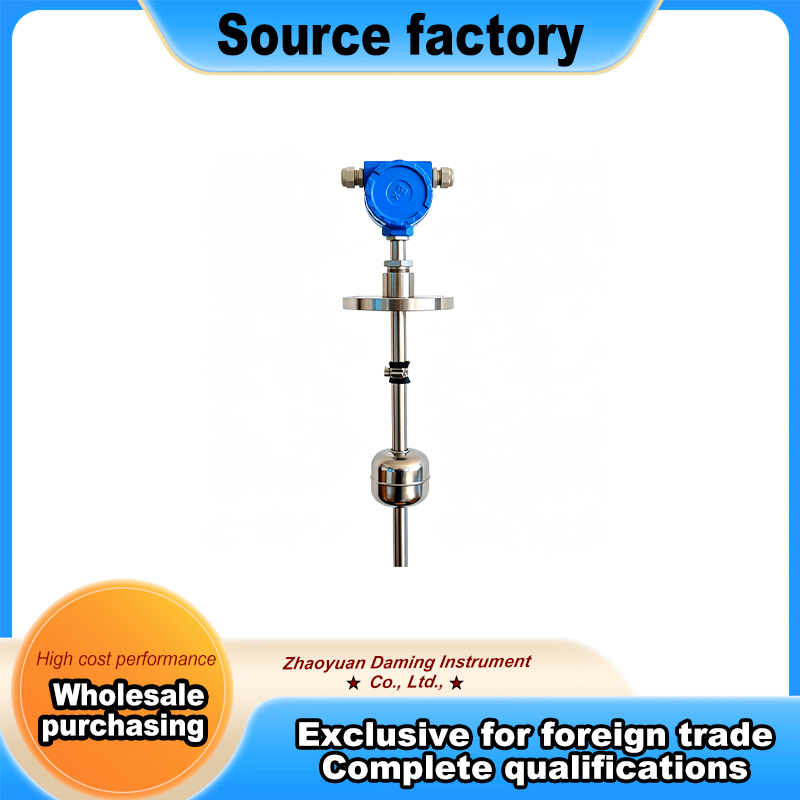

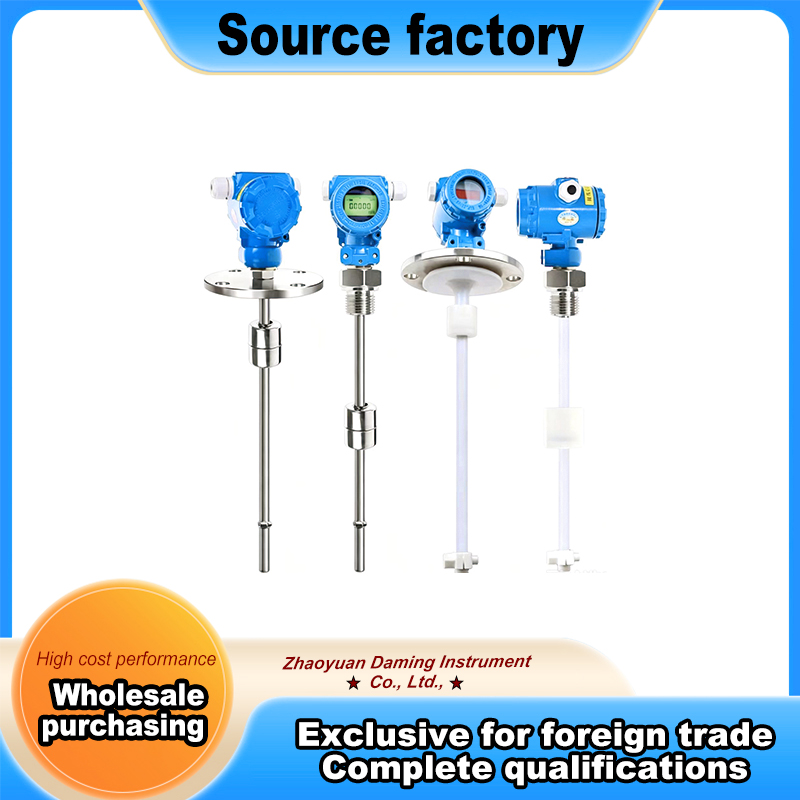

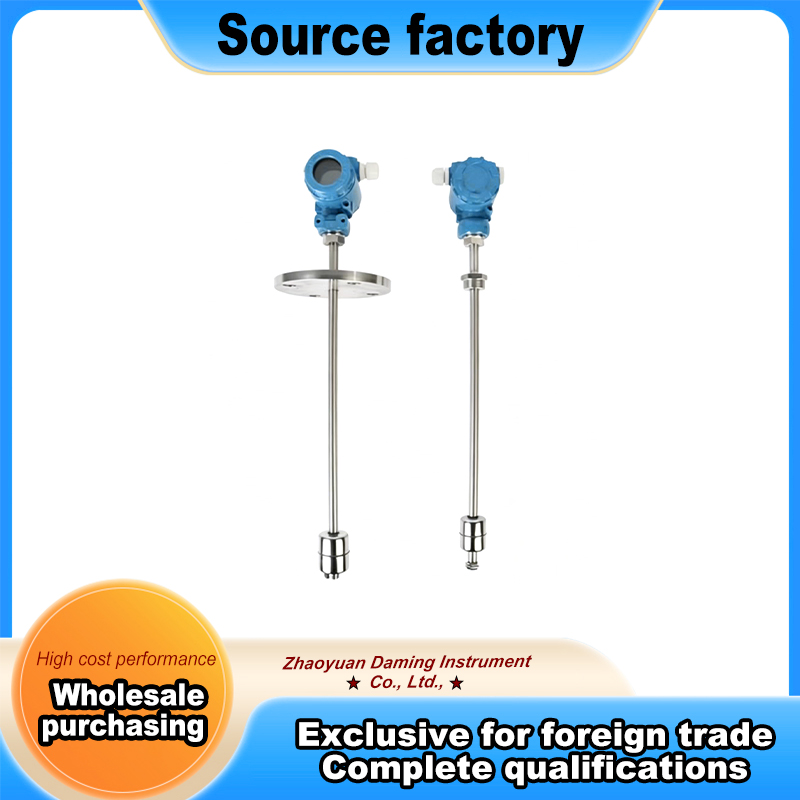

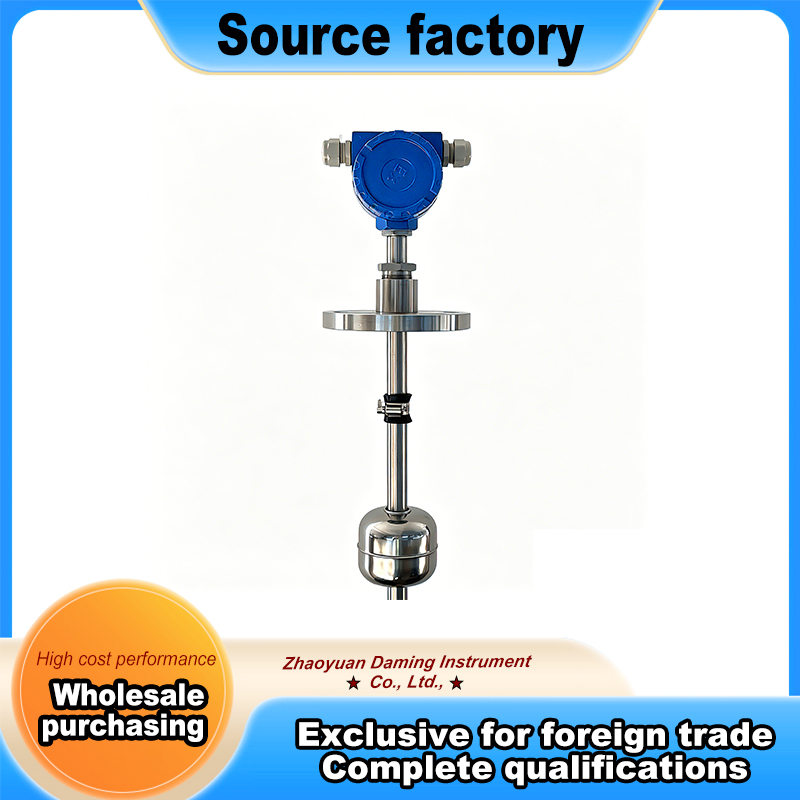

Stainless Steel Float Level Transmitter for Industrial Tank Level Monitoring The UDM Series Level Transmitter includes this stainless steel float level transmitter. The unit uses a magnetic float that moves with liquid level. The float contains a magnet that activates a sensor inside the guide rod. The transmitter converts this signal to a 4-20mA output. The housing and wetted parts are made from 304 or 316L stainless steel. These materials provide good strength and resist rust. The welded construction prevents leaks. The unit handles high temperature media and pressurized tanks. The Float Level Sensor works for water, oil and mild chemical liquids. The design has no mechanical contact between the float and the sensor. This gives long service life with low failure rate. This transmitter supports top mount and side mount installations. Top mount goes through the top of the tank with a flange. Side mount connects to the side of the tank or pipe with a thread or flange. The standard thre…
