IVD Precision Gear Pump

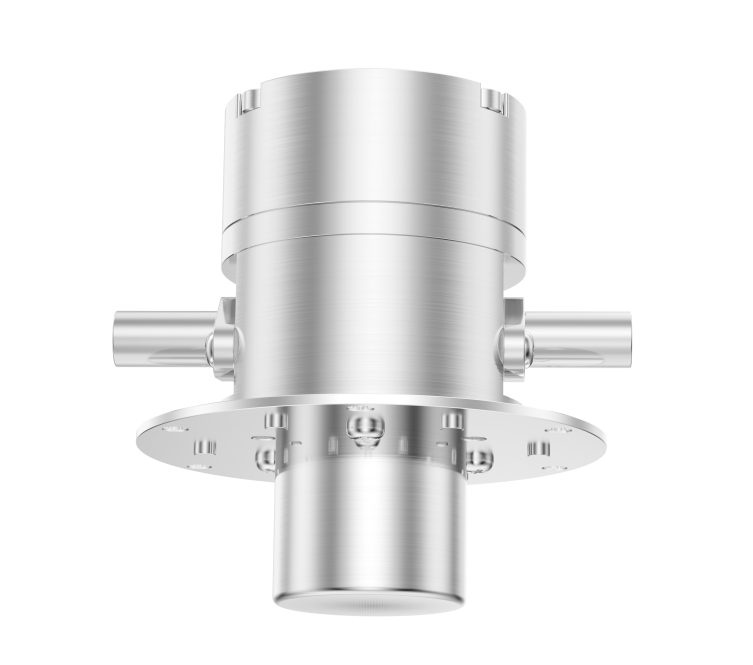

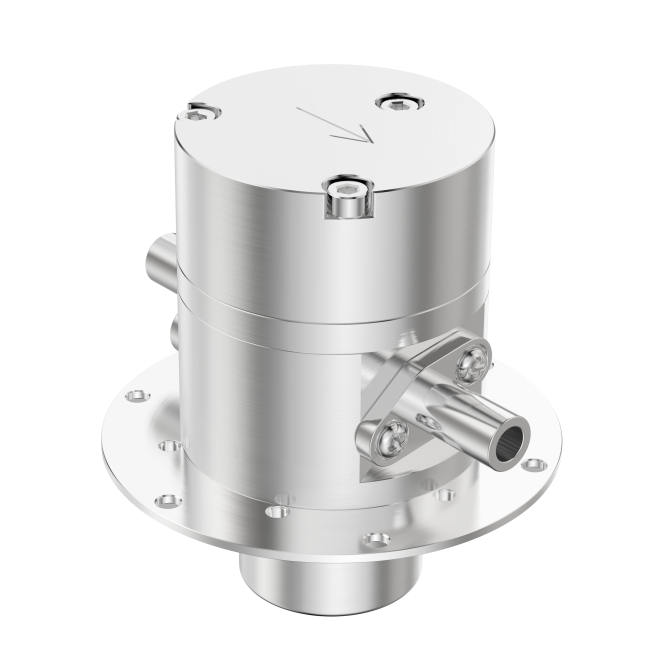

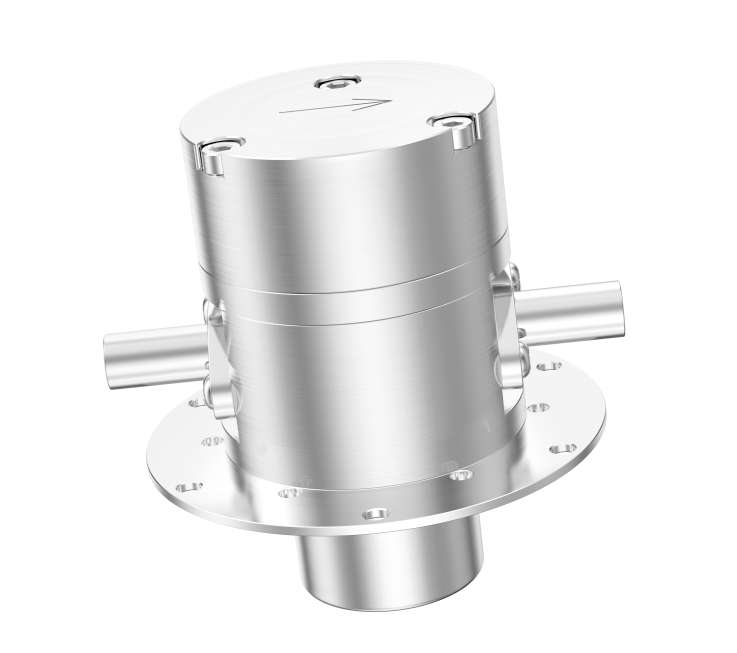

Product Description J-Tron hemodialysis gear pump is the precision pump solutions for healthcare industry. This medical gear pump has three different flow rate that satisfiy all applications in the medical. They are 1.6L/min, 3.5L/min, 6L/min. The corresponding maxium pressure matching to the flow rate is 20bar, 8bar, 7bar. J-Tron uses advanced material which is stainless steel 316L for the entire pump body and shafts, modified PEEK for the gears and customized EPDM from Germany for the sealing. J-Tron self develop 40W/70W brushless motor with 0~5V speed change. Voltage is 24V DC and 12V DV can choose. The revolution range is between 100rpm to 4500rpm. The viscosity range is between 0.5cps to 1500cps.  Advantage J-Tron medical devices micro gear pump takes several advantages. The most important one is that medical gear pump is biocompatibility certified for medical confidence. The second one is it is 0.3% flow rate accuracy. The third one is that it is very stable transfering liquid…
