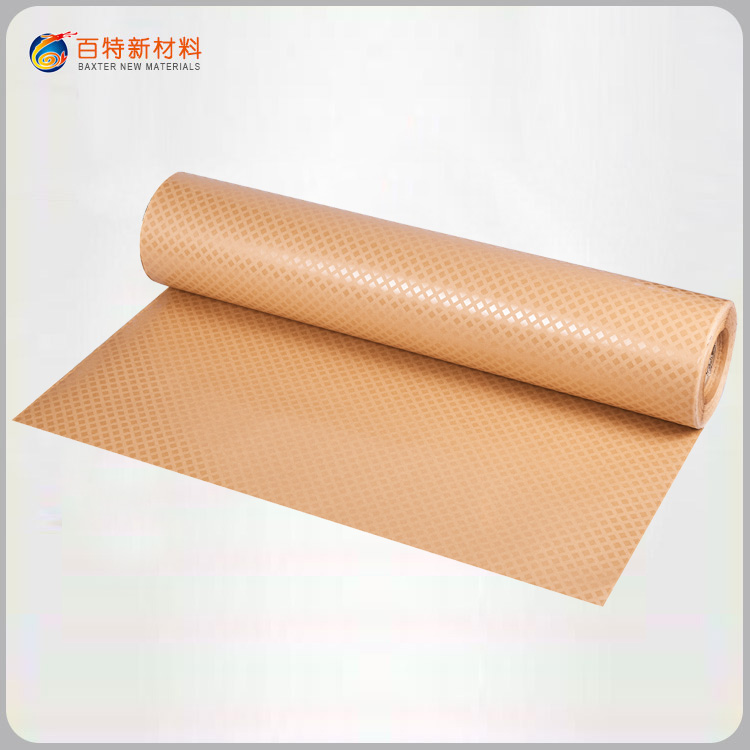

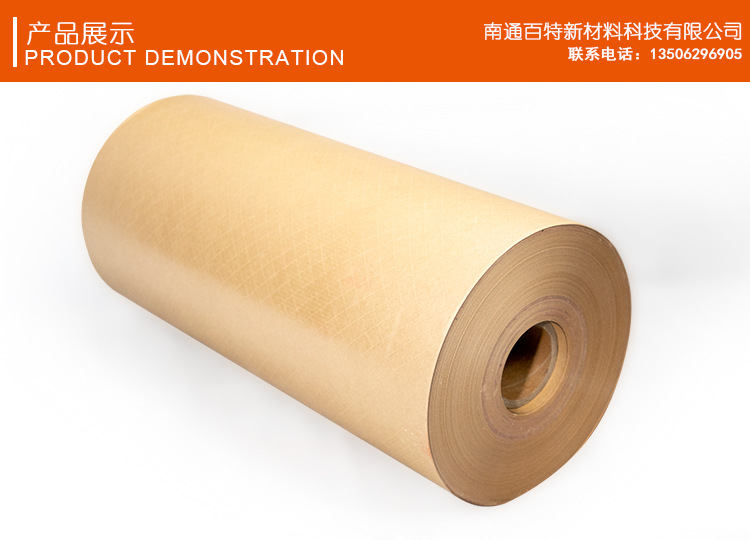

The Diamond Dotted Paper

Product thickness: 0.08mm, 0.13mm, 0.18mm, 0.25mm   Product width: 625mm, 960mm, 1020mm, 1100mm (Special specifications can be produced according to customer requirements)   Glue dot size: 9.4mm X 9.4mm   Glue dot size: 6.5mm   Product Introduction: Diamond dotted paper is an electrical insulation paper-based materials made by coating a special modified epoxy resin in a rhombus shape on cable paper using as the substrate. Make the coil have excellent resistance to axial short circuit stress; improve the permanent impact resistance to heat and force of the coil, which is beneficial to the life and reliability of the transformer.  The product is widely used for interlayer insulation and interturn insulation of oil immersed power transformers.
