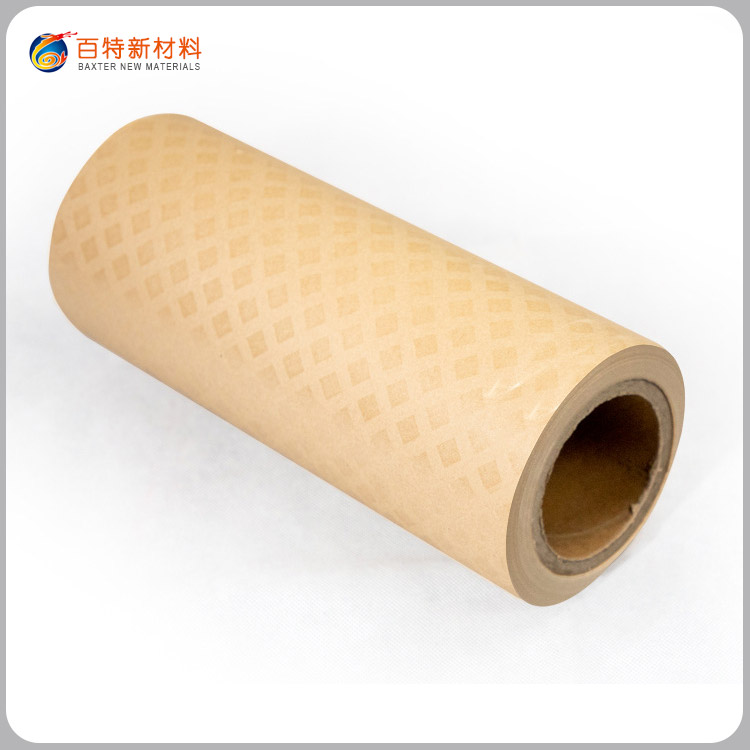

Diamond Dotted Paper AMA

Product features: It uses power cable paper as the base material and composite epoxy resin as the adhesive. Through equipment, double-sided diamond-shaped glue dots are printed on the base material, and then it is baked, dried, and wound into double-sided diamond-shaped glued insulating paper.   Product thickness: 0.08mm / 0.13mm / 0.18mm / 0.25mm   Product width: 625mm / 960mm / 1020mm / 1100mm (Special specifications can be produced according to customer requirements)   Glue dot size: 9.4mm X 9.4 mm            Glue dot interval: 6.5mm   Product introduction: Diamond dotted paper AMA is one of electrical insulation paper-based materials. Diamond dotted paper AMA is a new type of electrical insulation material made of polyester film and two layers of imported high quality aramid paper, and then a special modified epoxy resin is evenly coated on the AMA in a diamond shape. Diamond dotted paper AMA is mainly used in oil-immersed transformers to replace original insulation materials and…
