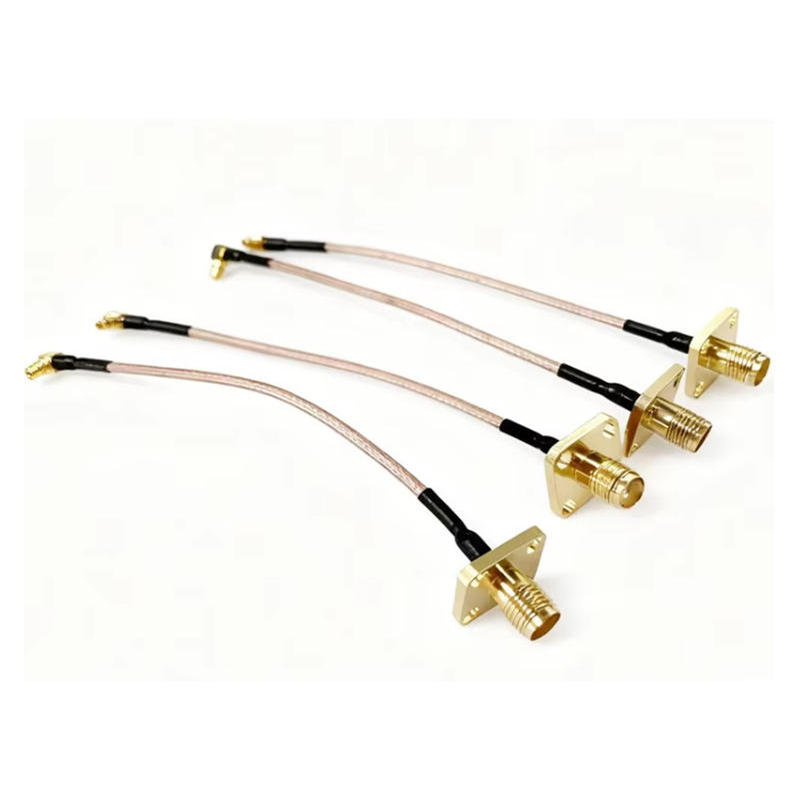

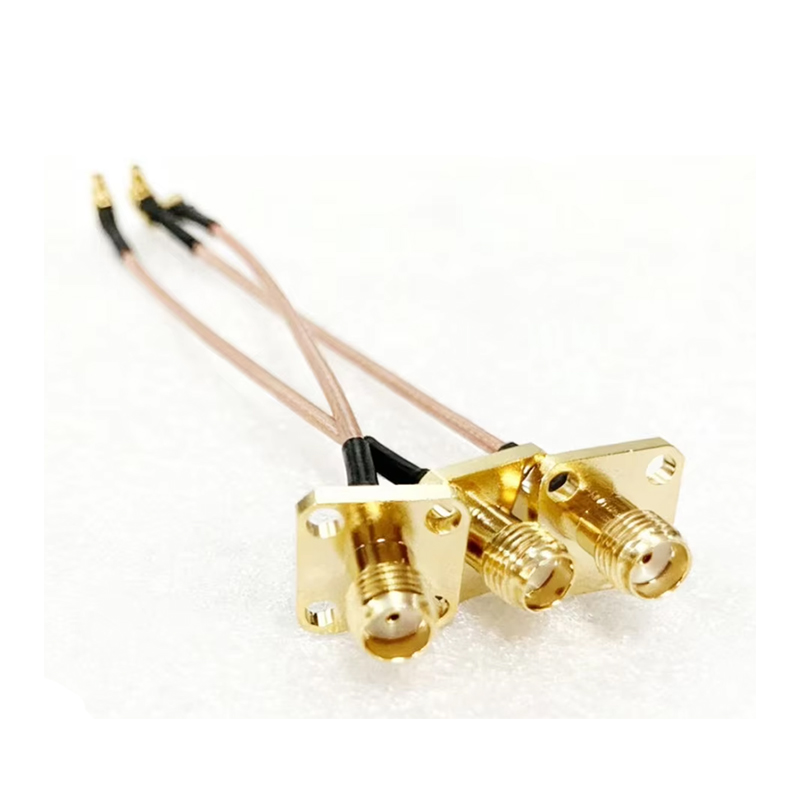

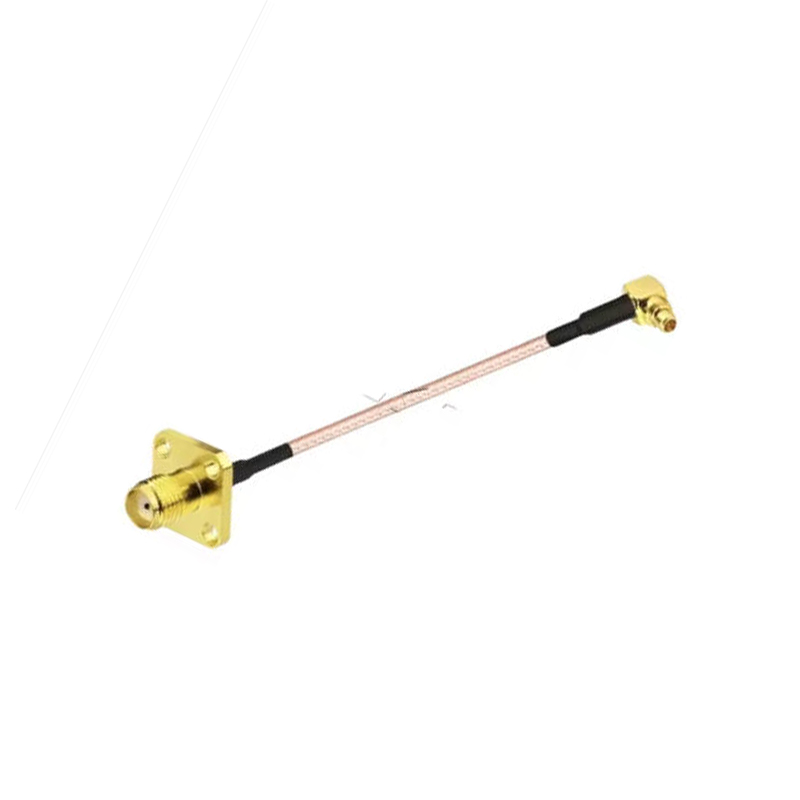

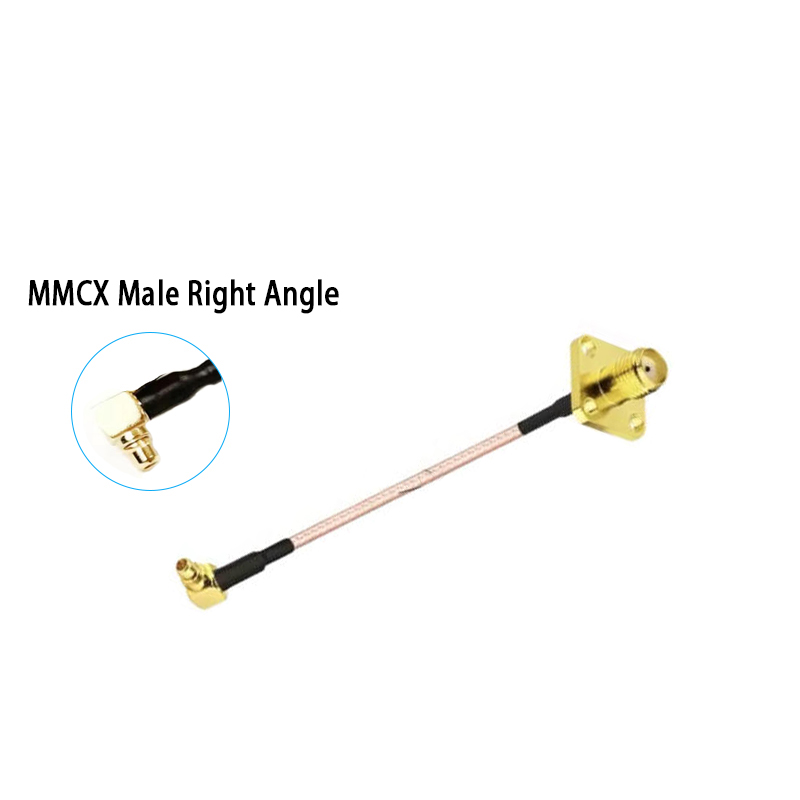

MMCX to SMA Female Four Hole Flange Cable

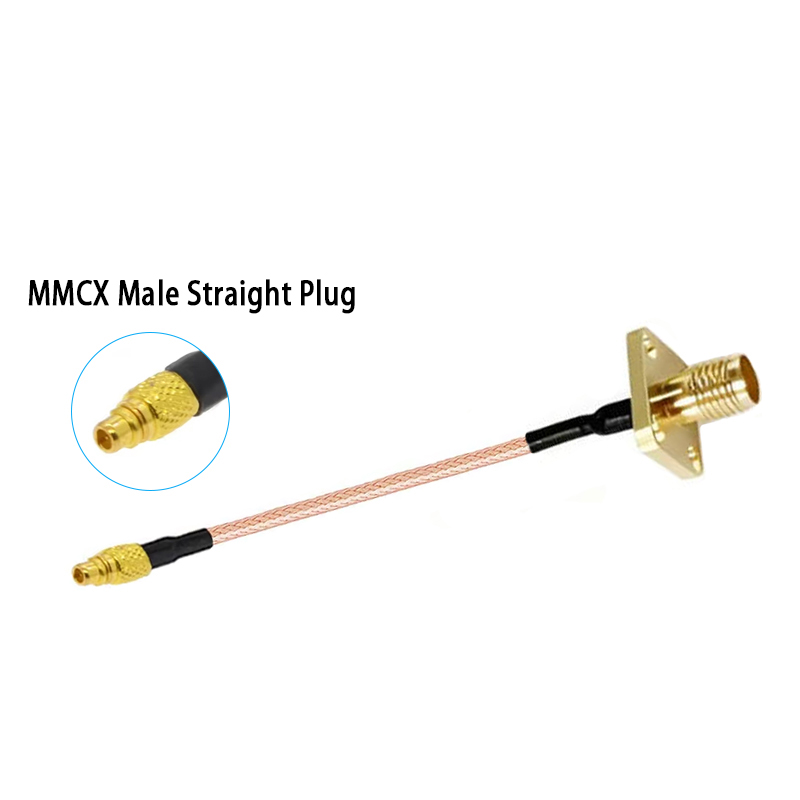

The SMA female 4-hole flange to MMCX male cable assembly is an RF adapter cable designed specifically for high-reliability industrial and communication equipment. This product integrates a 4-hole square flange SMA connector with a compact MMCX connector via a high-quality coaxial cable, providing an extremely robust and reliable plug-and-play connection solution from the device's panel port to the internal RF module. This product is particularly suitable for applications with stringent requirements for vibration resistance, frequent insertion and removal, and long-term stability.   Basic Parameters Product Name: MMCX to SMA Female Four Hole Flange Cable Connector A: SMA 4-hole square flange female connector Connector B: MMCX straight male connector Cable Type: RG316/RG174 (customizable) Impedance: 50 Ω ± 2 Ω Frequency Range: DC - 6 GHz (customizable up to 18 GHz) VSWR: < 1.3 @ 3 GHz Attenuation: 1.2 dB/m @ 3 GHz (typical) Shielding: > 90 dB @ 3 GHz Sheath Material: Low smoke ha…
