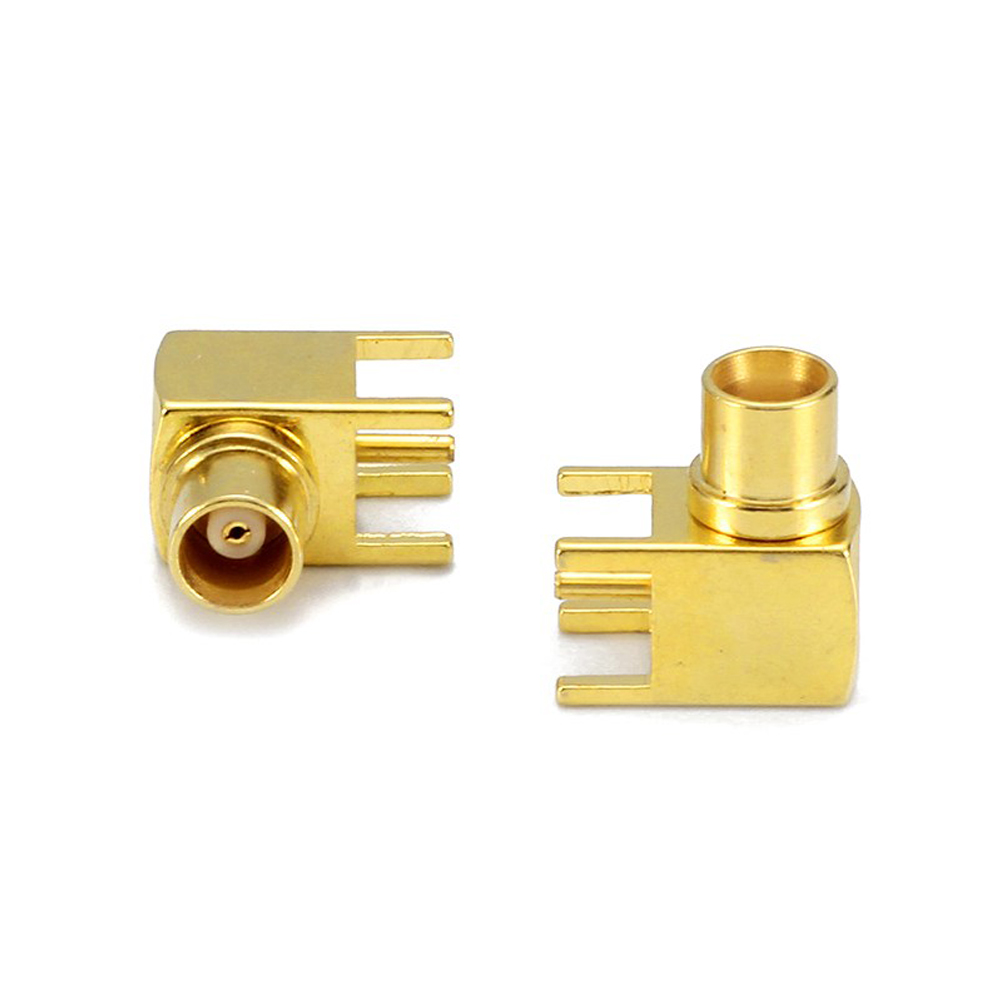

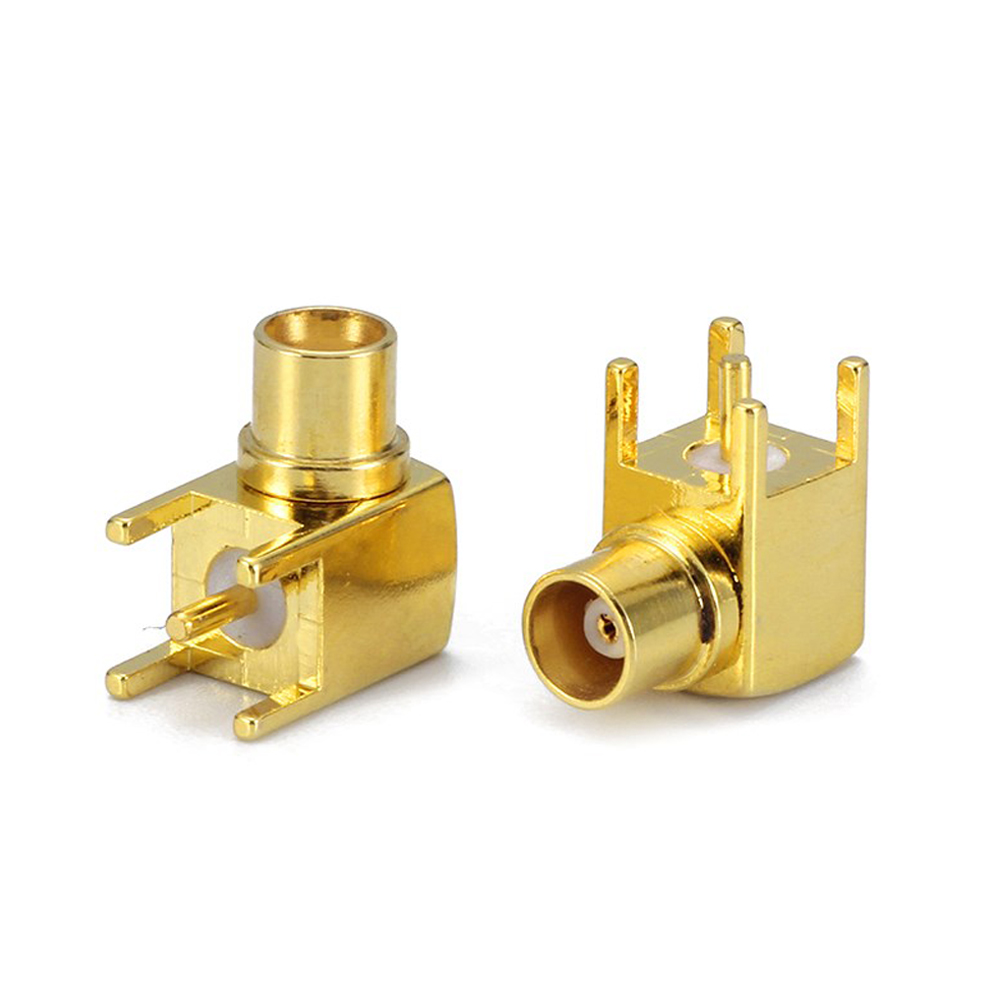

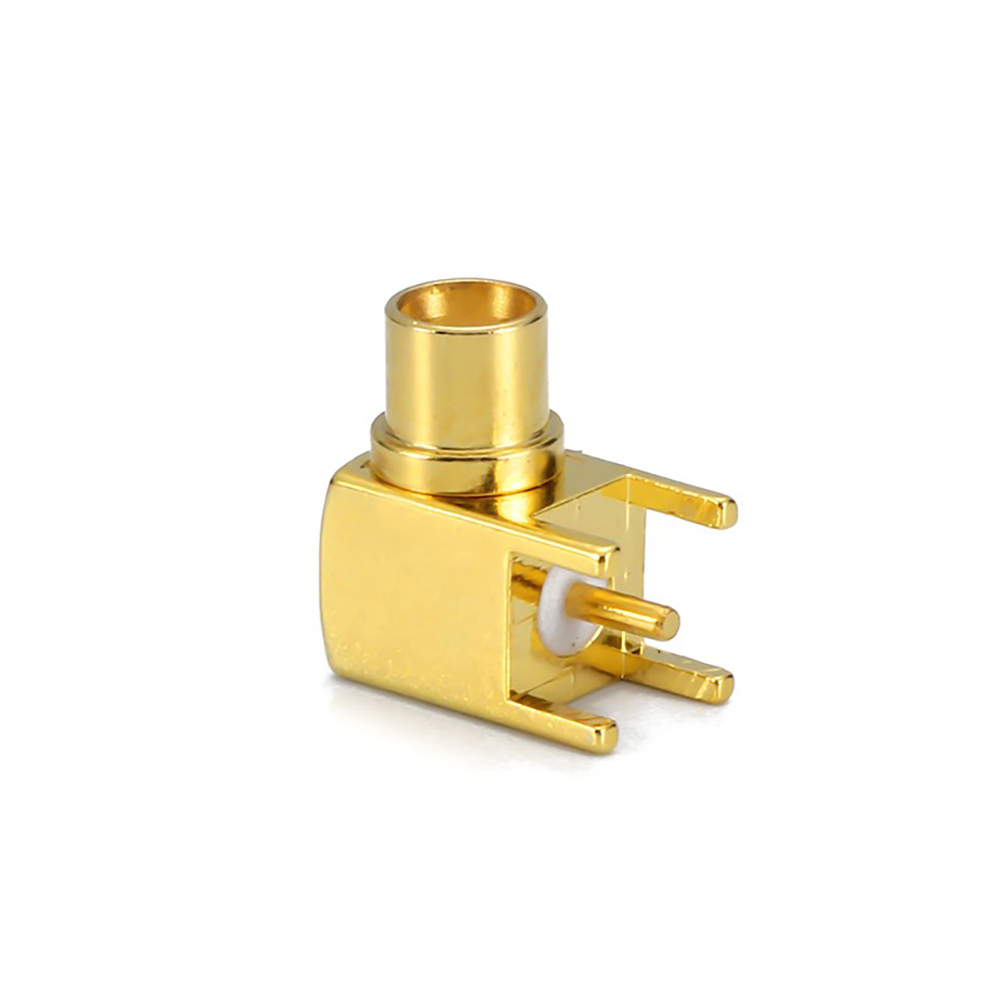

MCX-KWE Right Angle Jack Connector

The MCX 90° right-angle female PCB connector features an L-shaped integrated inner conductor design, specifically designed for space-constrained, high-density PCB layouts. It reduces vertical space requirements by 60% while maintaining excellent DC-6GHz RF performance. It is an ideal RF interface solution for compact wireless devices, test instruments, and automotive systems.   Product Introduction Product Name:MCX-KWE Right Angle Jack Connector Connector Type: MCX Female, 90° Right Angle Impedance Matching: 50Ω Frequency Range: DC - 6GHz VSWR: ≤1.30 @ 2GHz ≤1.45 @ 6GHz Standard Connection (Including Right Angle Loss) Shielding Effect: ≥85dB @ 3GHz - 360° Full Shielding Housing Material: Nickel-plated Copper/Gold-plated (Optional) Inner Conductor: Gold-plated Copper Insulation Material: PTFE (Polytetrafluoroethylene) Low Loss, Stable Dielectric Constant Mounting Method: Through-hole Soldering/Surface Mount (Optional) Mating/Removal Life: ≥500 Cycles, Performance Degradation <15% Op…
