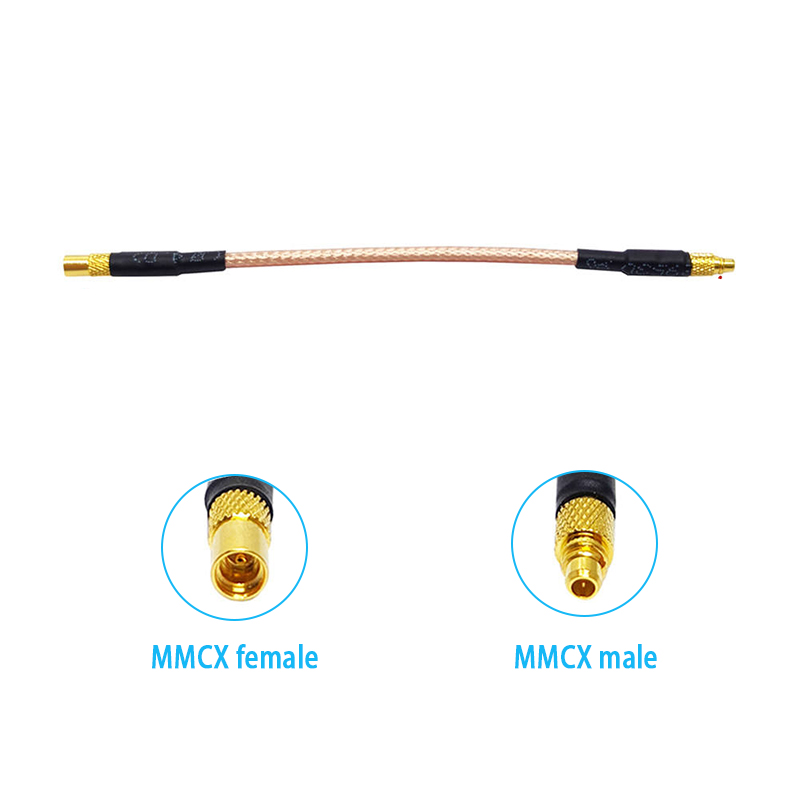

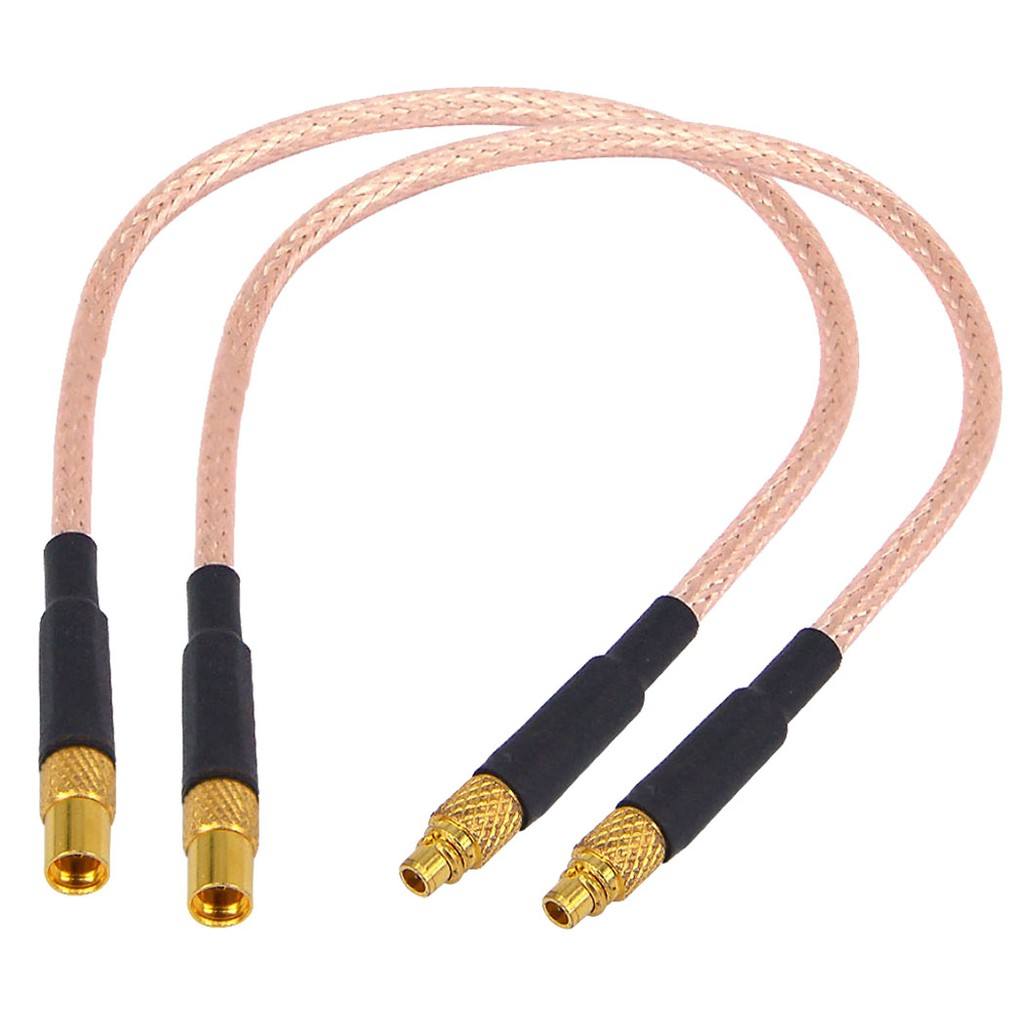

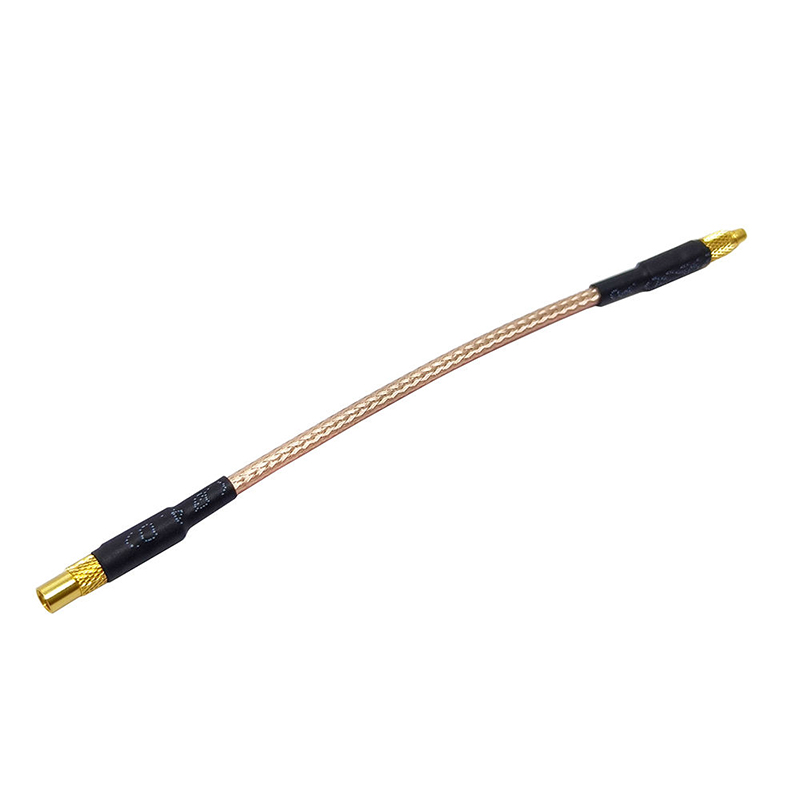

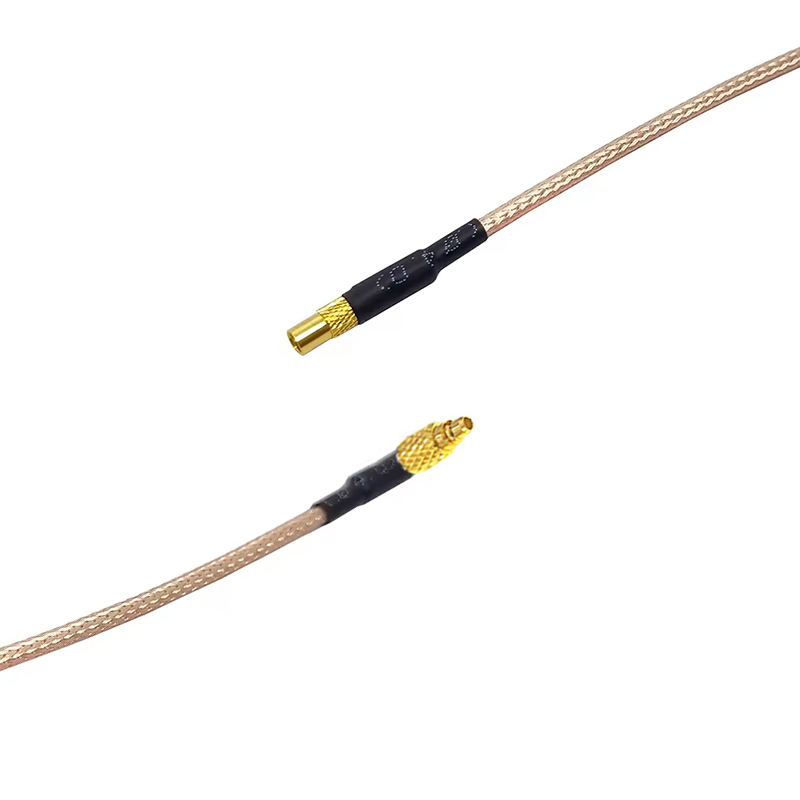

MMCX Male to MMCX Female Coaxial Cable

Product Overview: The MMCX male to MMCX female RF adapter cable is designed specifically for modern wireless devices in space-constrained environments. It employs a miniature snap-lock mechanism, supports 360° free rotation, and provides a reliable RF connection in minimal space. Suitable for high-density integrated applications such as WiFi modules, Bluetooth devices, GPS receivers, and IoT terminals.   Basic Parameters Product Name:MMCX Male to MMCX Female Coaxial Cable Connector Type: MMCX Male/MMCX Female Housing Material: Nickel-plated Copper/Gold-plated Copper (Customizable) Contacts: Beryllium Bronze Gold-plated (1.5μm) Insulation Material: PTFE (Polytetrafluoroethylene) Impedance Matching: 50Ω Standard Frequency Range: DC - 6GHz (Higher frequencies customizable) VVSWR: <1.5 Operating Temperature: -40~+85°C   Adapter Cable Features
