Basic Outdoor Enclosures Box

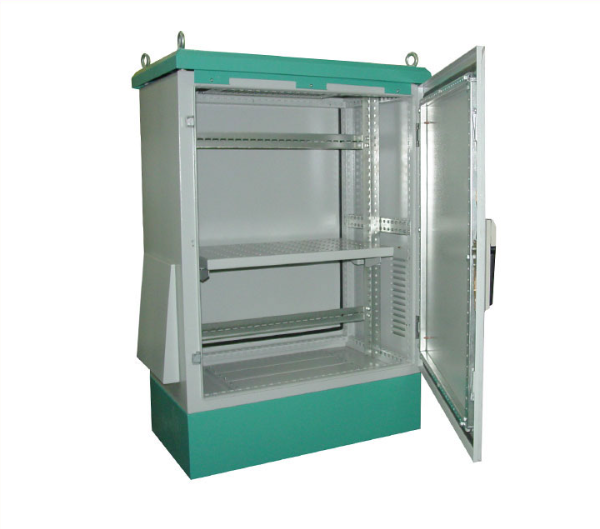

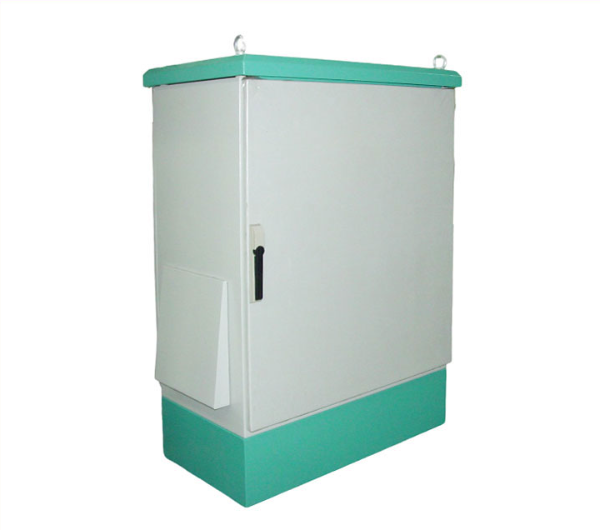

Basic Outdoor Enclosures provide essential, economical protection for small power, telecom and IoT devices that must operate outside the building. Fabricated from 1.2–1.5 mm galvanized steel or optional 201 stainless steel, the one-piece folded body is seam-welded at corners and finished with UV-stable polyester powder to achieve IP55 sealing against rain, dust and wind-driven debris.   A sloped, integrated roof prevents water pooling, while concealed hinges and a single-point lock deter casual tampering. Internally, a removable galvanized back-plate with 25 mm-pitch holes accepts DIN rails, 19-inch angles or direct-mounted components up to 50 kg, allowing installers to drop-in breakers, fiber splice trays or LTE routers without extra drilling. Removable top and bottom gland plates allow rapid cable entry while maintaining the seal.     Key advantages include: • Budget-friendly – high-speed turret punching and robotic welding cut material waste 10 %, giving OEMs an entry-level pric…
