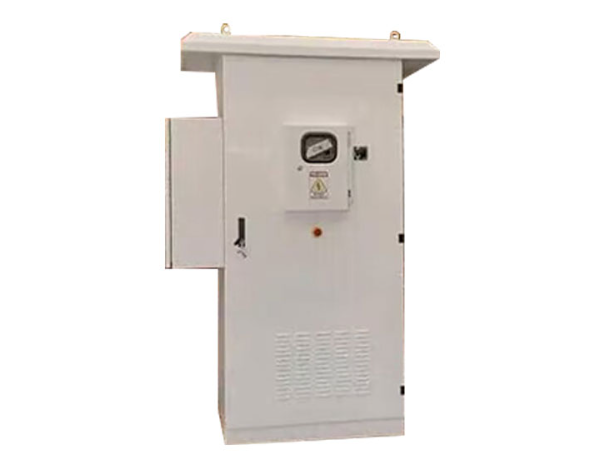

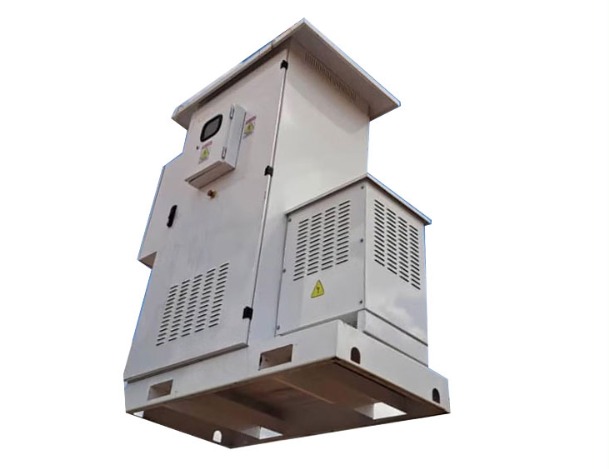

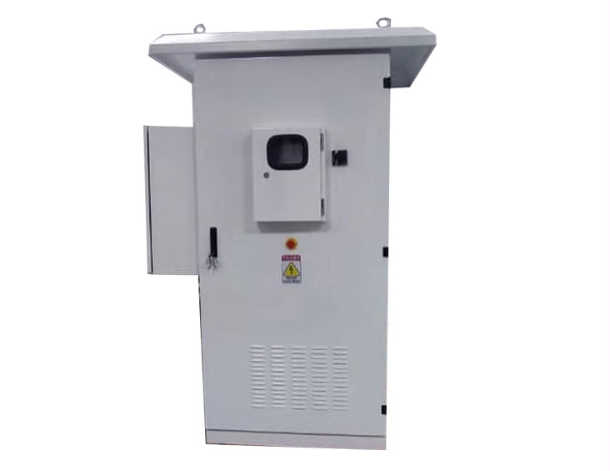

Deep Outdoor Cabinets 24U

Deep Outdoor Cabinets are floor-standing, extra-depth enclosures engineered to house large UPS batteries, servers, transmission gear and energy-storage systems in harsh outdoor sites. Built from 2 mm galvanized or 304/316L stainless steel, cabinets are fully seam-welded and powder-coated to achieve IP55/IP65 sealing and 1,200 h salt-spray resistance, guaranteeing reliable performance from –40 °C to +55 °C.   Depth options extend to 800 mm (32 in.), providing 27–42 U of 19-inch rack space plus a separate battery zone, so users can mount 4–16 kWh of lithium modules while maintaining rear cable bend-radius requirements. A double-wall sandwich roof and side panels reduce solar heat gain by 7 °C; integrated 500 W AC or DC fans/heat-exchangers hold ΔT < 10 °C to extend battery cycle life.     Key advantages include:• Deep footprint – 600–800 mm depth accepts full-length servers, rectifiers and tall VRLA cells without protruding doors.• Weather immunity – IP65 gasket and wind-driven-rai…
