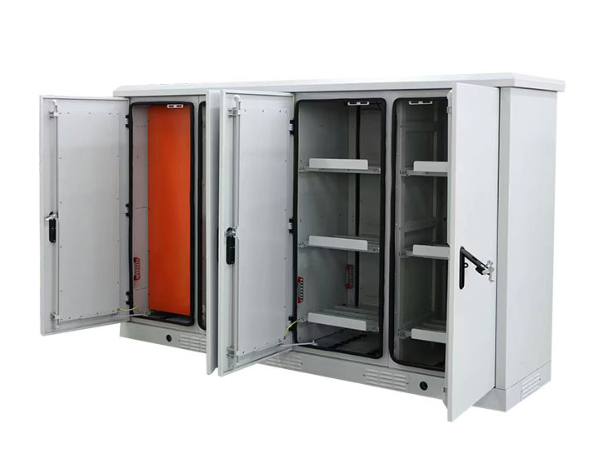

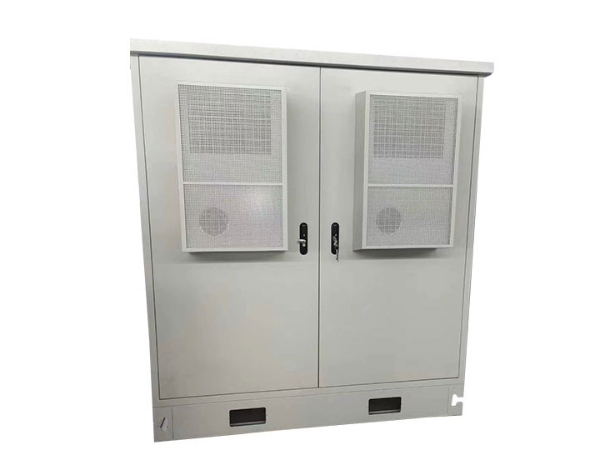

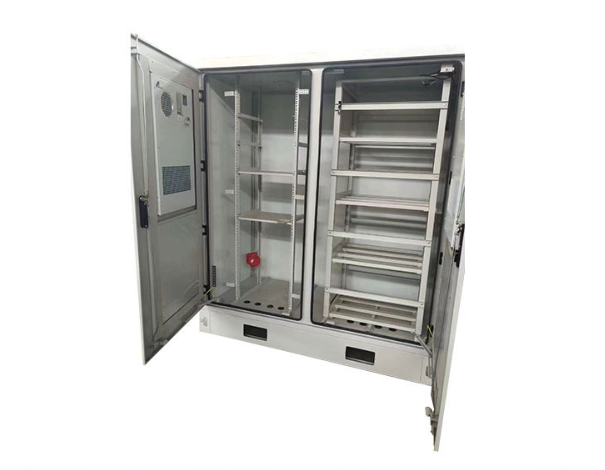

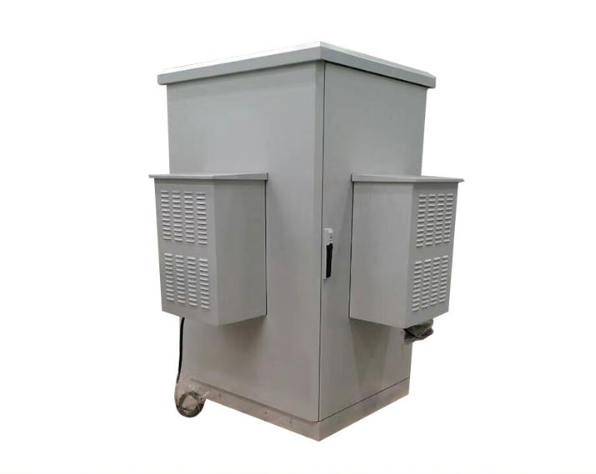

Outdoor Battery Cabinet The Outdoor Battery Cabinet is a heavy-duty, free-standing enclosure engineered to house lithium-ion, LiFePO₄ or VRLA battery modules together with UPS, rectifiers and distribution gear in the toughest outdoor environments. Fabricated from 2 mm galvanized or 304/316L stainless steel, the cabinet is fully seam-welded and finished with UV-stable polyester powder to achieve IP65 / NEMA 4X sealing, proven in 1,200 h salt-spray and –40 °C to +55 °C field tests. Inside, a 19-inch adjustable rack frame (20–42 U) accepts slide-in battery trays up to 800 V DC and 50 kWh per bay, while partitioned zones isolate power electronics from cells to meet UL 9540A fire tests. Removable top, bottom and side gland plates handle over-sized armoured cables up to 240 mm² without drilling, and an integrated 1,500 W DC air-conditioner or heat-exchanger keeps ΔT < 10 °C, extending battery cycle life by 20 %. Key advantages • Weather immunity – IP65 gasket and sloped roof preve…
